automatic blowing moulding machine

General Information of Product

Standard High-Speed Servo Bottle Blowing Machine ZH-G Series:

1.Adopting advanced microcomputer control system, with stable performance; 2.Using infrared light tubes for heating, with strong penetration, the bottle preform rotates and is heated, and the track rotates, heating is uniform, fast and reliable;

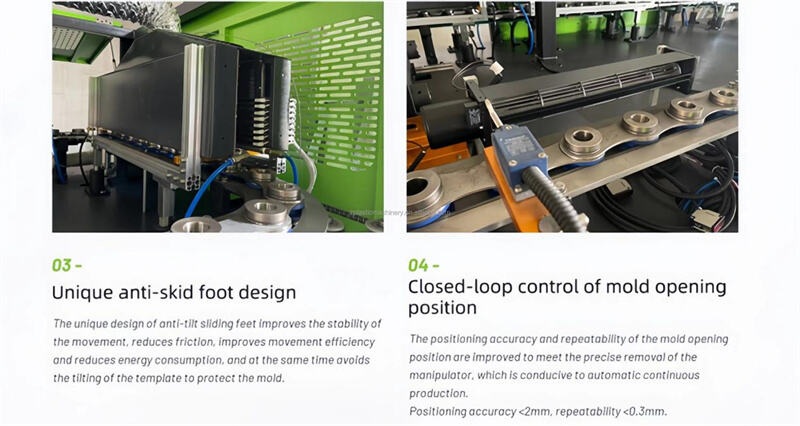

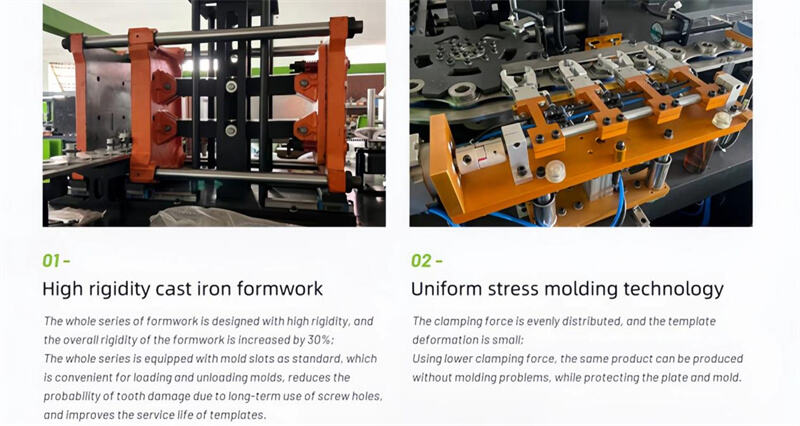

3.The width and height of the lamp tube and reflector in the heating zone can be adjusted to suit the heating of different structure bottle preforms, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying channel; 4. Each mechanical action has a safety self-locking device, and when a certain process malfunctions, the program will automatically switch to a safe state; 5.Each action is driven by a servo system: stretching servo, displacement servo, mold closing servo, upper embryo servo, without using traditional cylinders, with advantages such as energy saving, stability, and precise control of various parts of the action; 6.Adopting high-pressure and hyperbolic arm connecting rod locking, with strong locking force; 7. The machine adopts a four template structure with double opening and double closing, saving mold locking time and greatly increasing machine output. This structure is independently developed by our company and has a domestic design patent; 8.The gears and racks are all milled with oblique teeth, subjected to six rounds of vacuum quenching and six rounds of high-precision grinding, achieving a hardness of 62°. High hardness and precision drive the machine to stretch and drive;

9. There are two operating methods: manual and automatic; 10.Unique valve position design, each part of the blowing valve action valve adopts well-known domestic brands or imported foreign brands, with safe and reliable quality and clear air circuit at a glance; 11. The production process is fully automated, with advantages such as low investment, high efficiency, easy operation, simple maintenance, and safety; 12.The cooling system achieves ideal cooling effect; 13. Easy installation and startup; 14. Bottle scrapping rate less than 0.2%.
